Safety Card

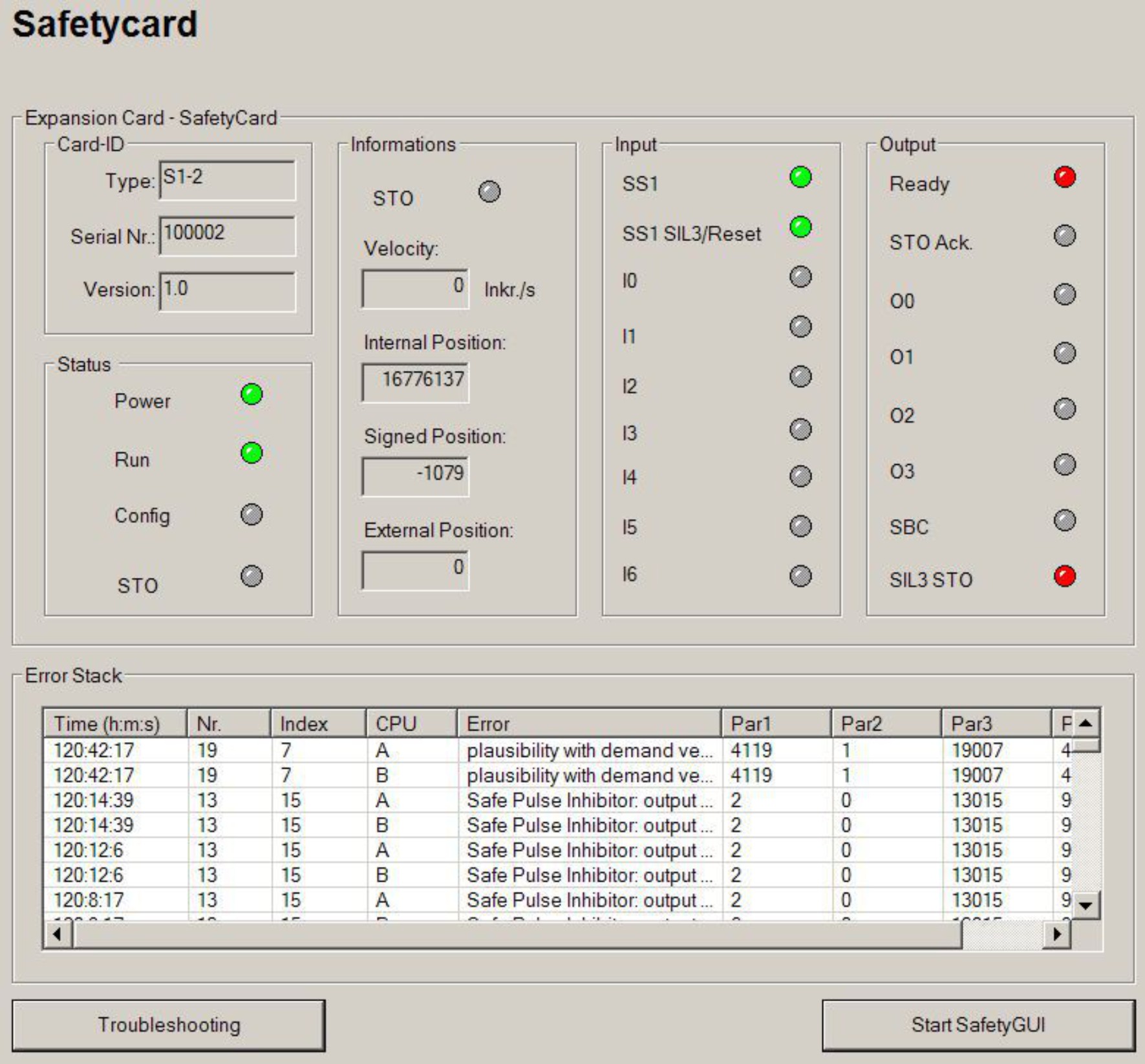

This screen shows the status of the built-in safety card.

The upper area shows data of the built-in card and the current I/O state. The error stack shows a history of safety errors related to the operation time counter of the servo amplifier.

Time	Operational time counter
No.	Safety Fault code (oXX see document Errors with S1, S2, S3, S4 Safety Cards from KDN Download Page).
Index	Safety Fault Subindex (iYY see document Errors with S1, S2, S3, S4 Safety Cards from KDN Download Page).
Fault	Fault description
CPU, Par1, Par2, Par3	internal parameters
