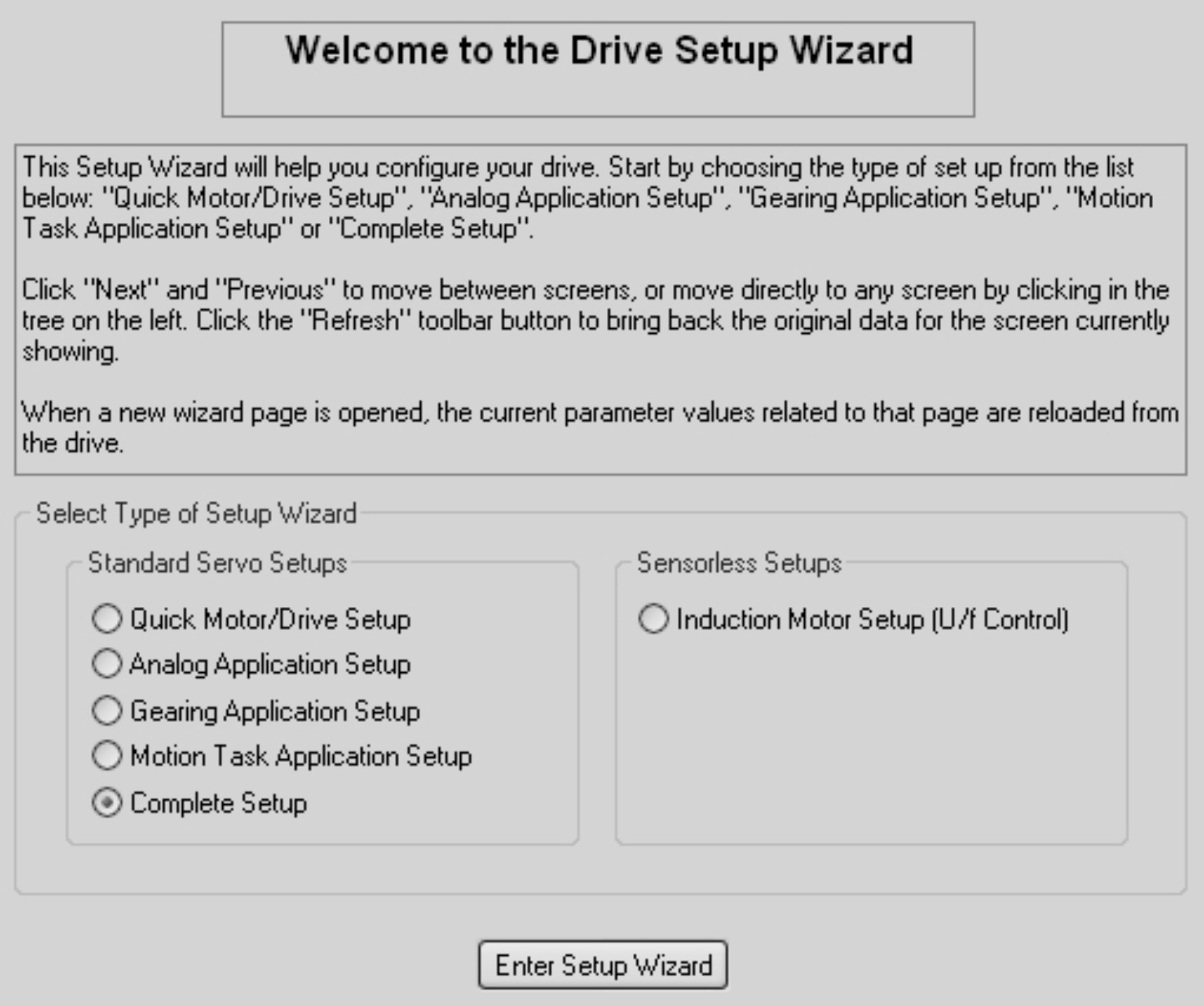

Setup Wizard

The Setup Wizard leads you through the necessary steps for configuring your servo amplifier. Depending on the selected application, only the active screen pages are necessary.

Select the setup type for your application:

Quick Motor/Drive Setup
Analog Application Setup
Gearing Application Setup
Motion Task Application Setup
Complete Setup
Induction Motor Setup V/f Control)

Enter the wizard. The first relevant screen page for your application pops up. Click "Next" and "Previous" to move between screens, or move directly to any screen by clicking in the navigation tree on the left.

Click the "Refresh" toolbar button to bring back the original data for the current screen.

If you need more or all setup pages, change the Setup Wizard setting. The last setting is saved when you exit the software and will be reloaded at restart.
