I/O Expansion Card

This screen is available only if an I/O expansion card is inserted into the servo amplifier.

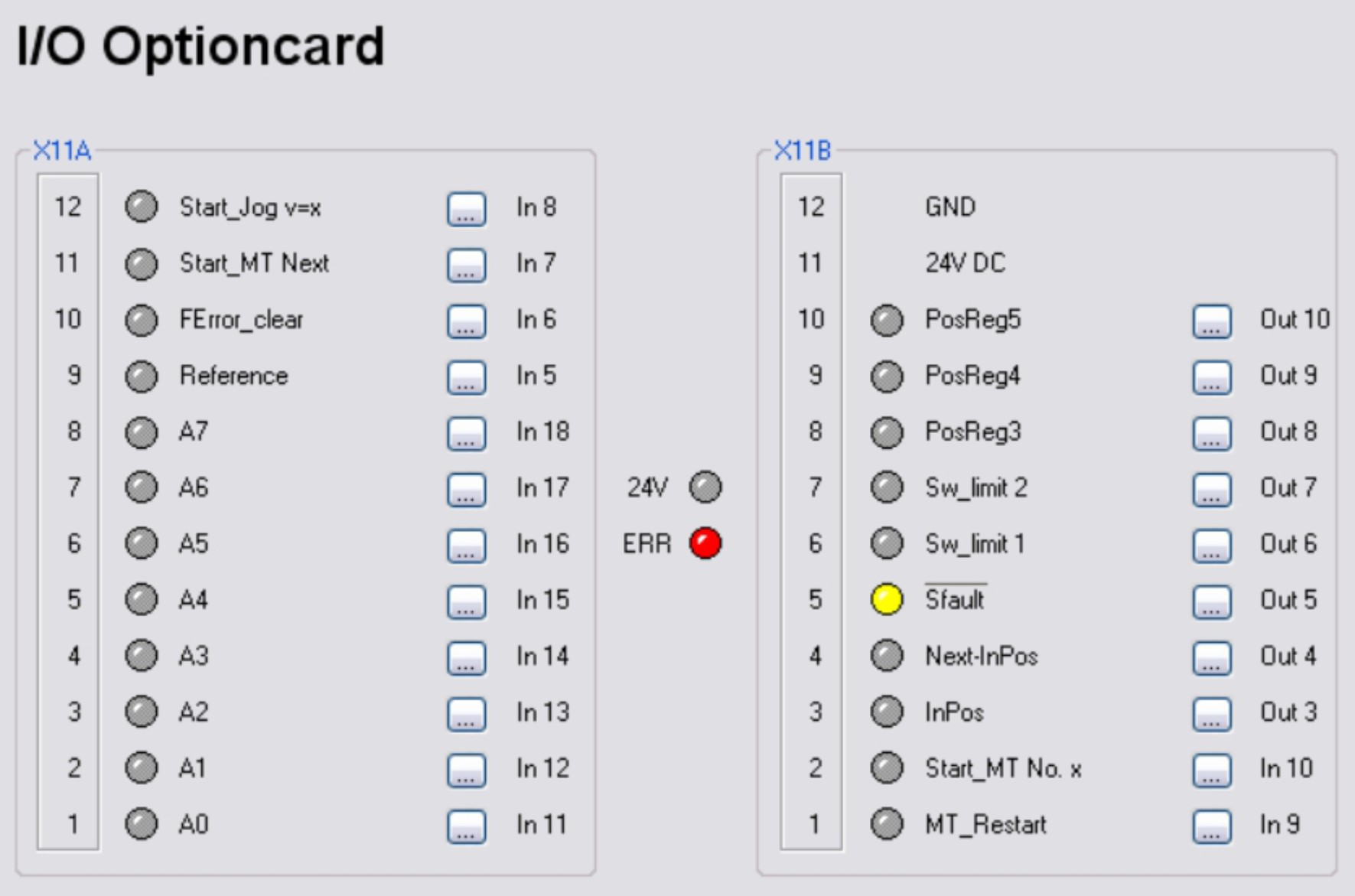

The status of the 14 additional inputs and 8 outputs is displayed here.

Inputs: Function INxMODE with x = {5...18}
Outputs: Function OxMODE with x = {3...10}

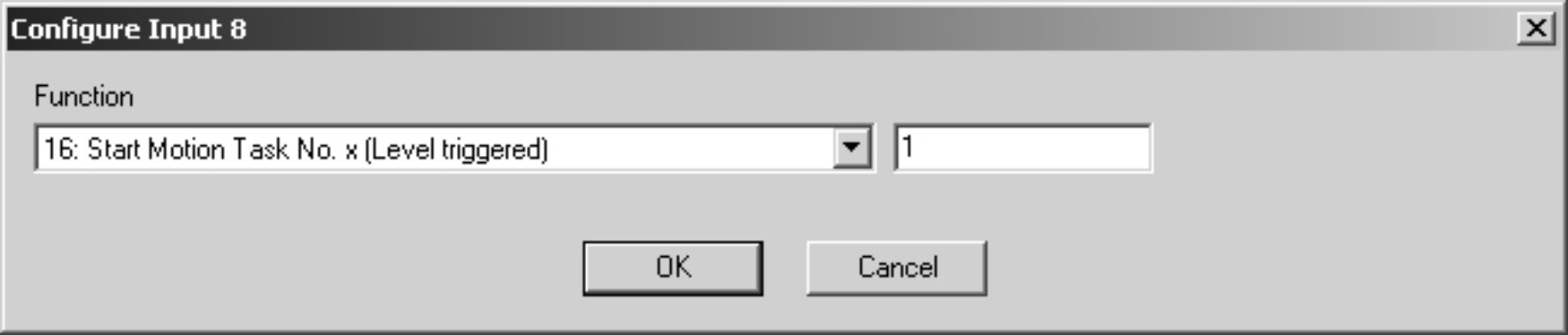

All inputs / outputs can be configured using the respective “...” button; when the button is clicked, a corresponding dialog window is opened.
