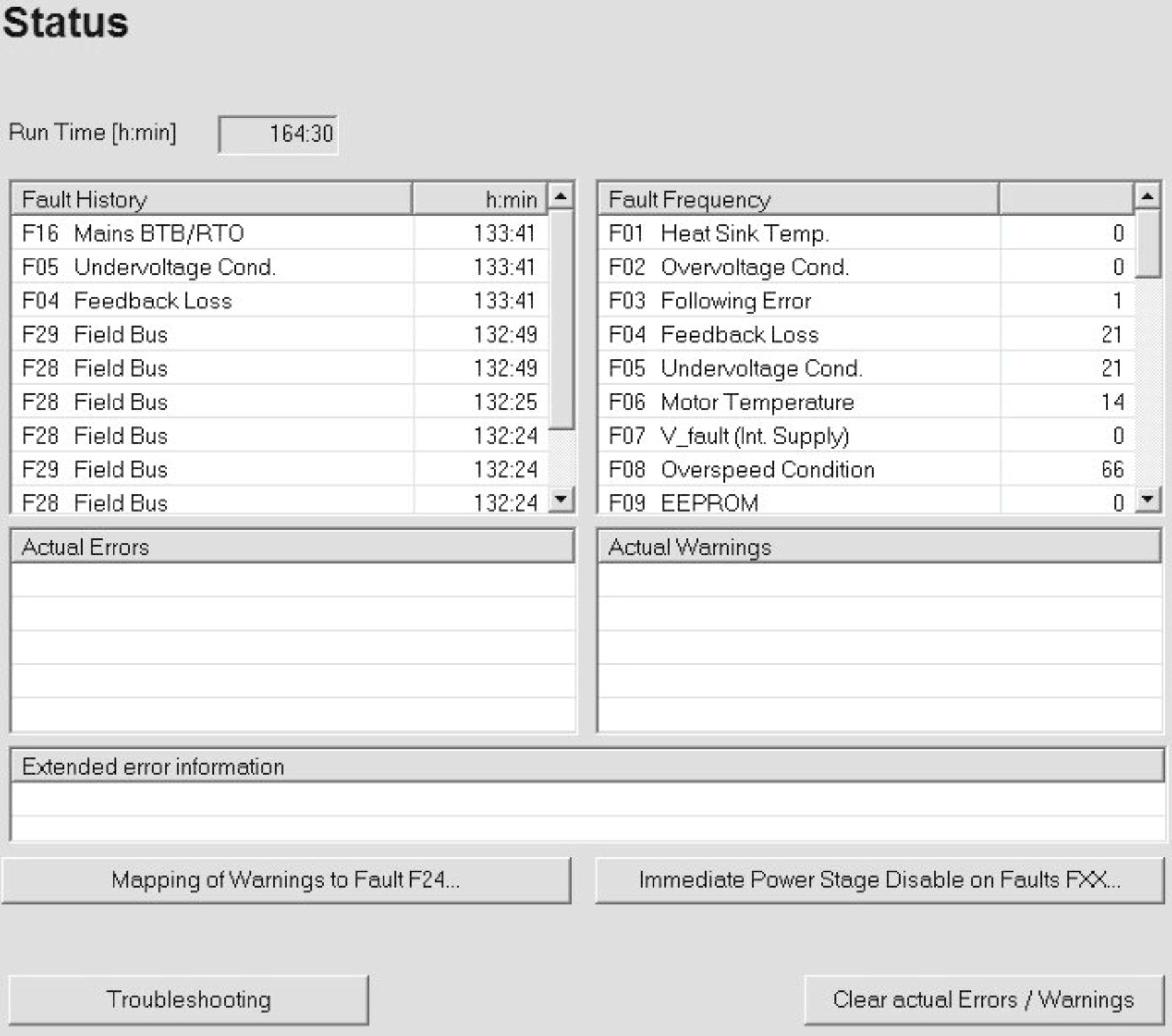

The actual fault status and the run time monitor of the servo amplifier are displayed here. Compare to the runtime status you can simply calculate when an fault occurrs.
Top left is the fault history with the time (run time) when the fault occured.
Top right is information about the frequency for every fault.
The center area, the actual fault and warnings are listed.
Bottom list: With special errors extended error information is shown here (see ERRCODE2).
The button "Troubleshooting" starts the help page "Trouble shooting"
You can find a list of all Error- and Warning messages.

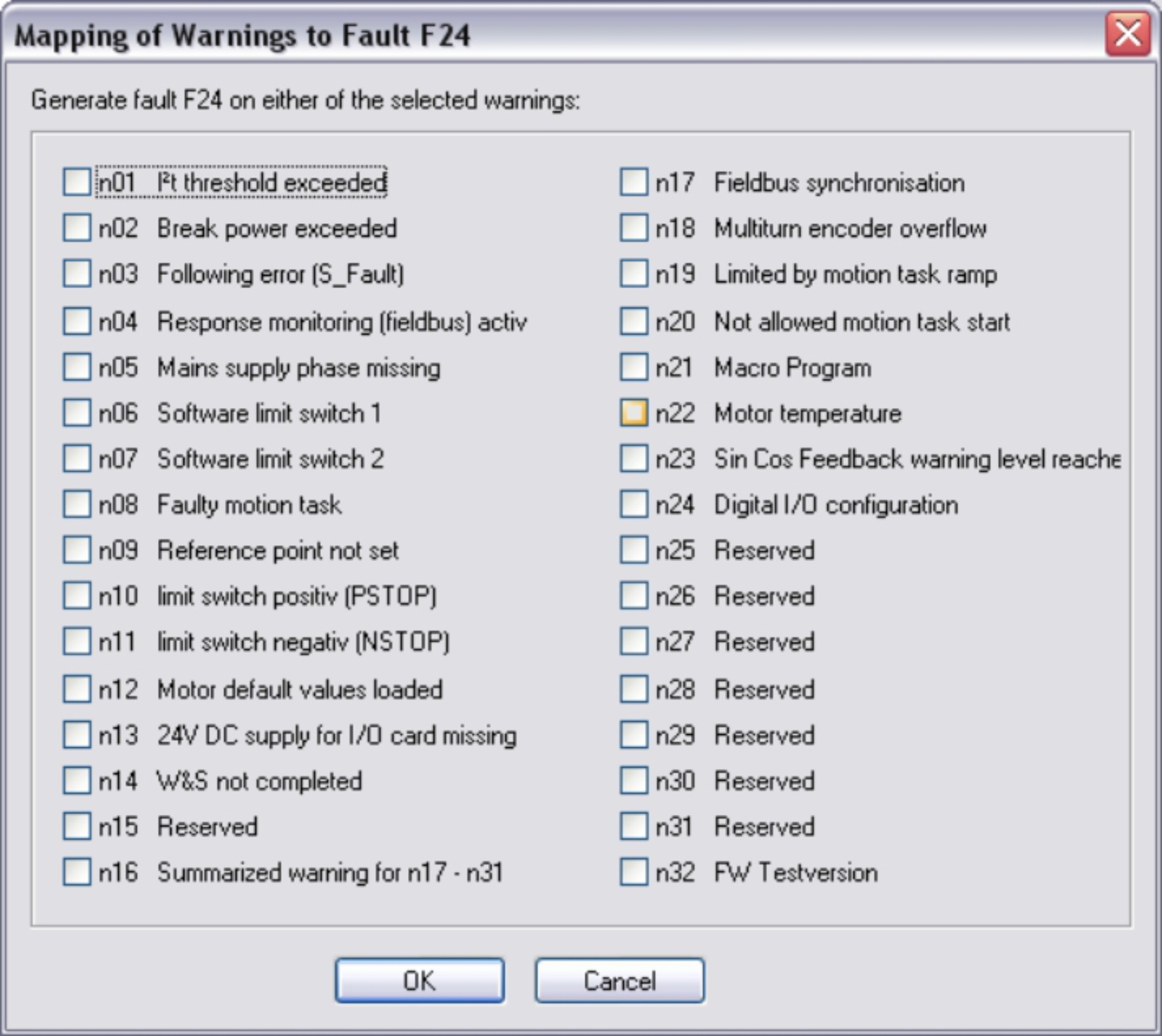

Click Button "Mapping of Warnings to Fault F24... " to define the fault message F24 (bit variable WMASK, see chapter Error- and Warning messages).

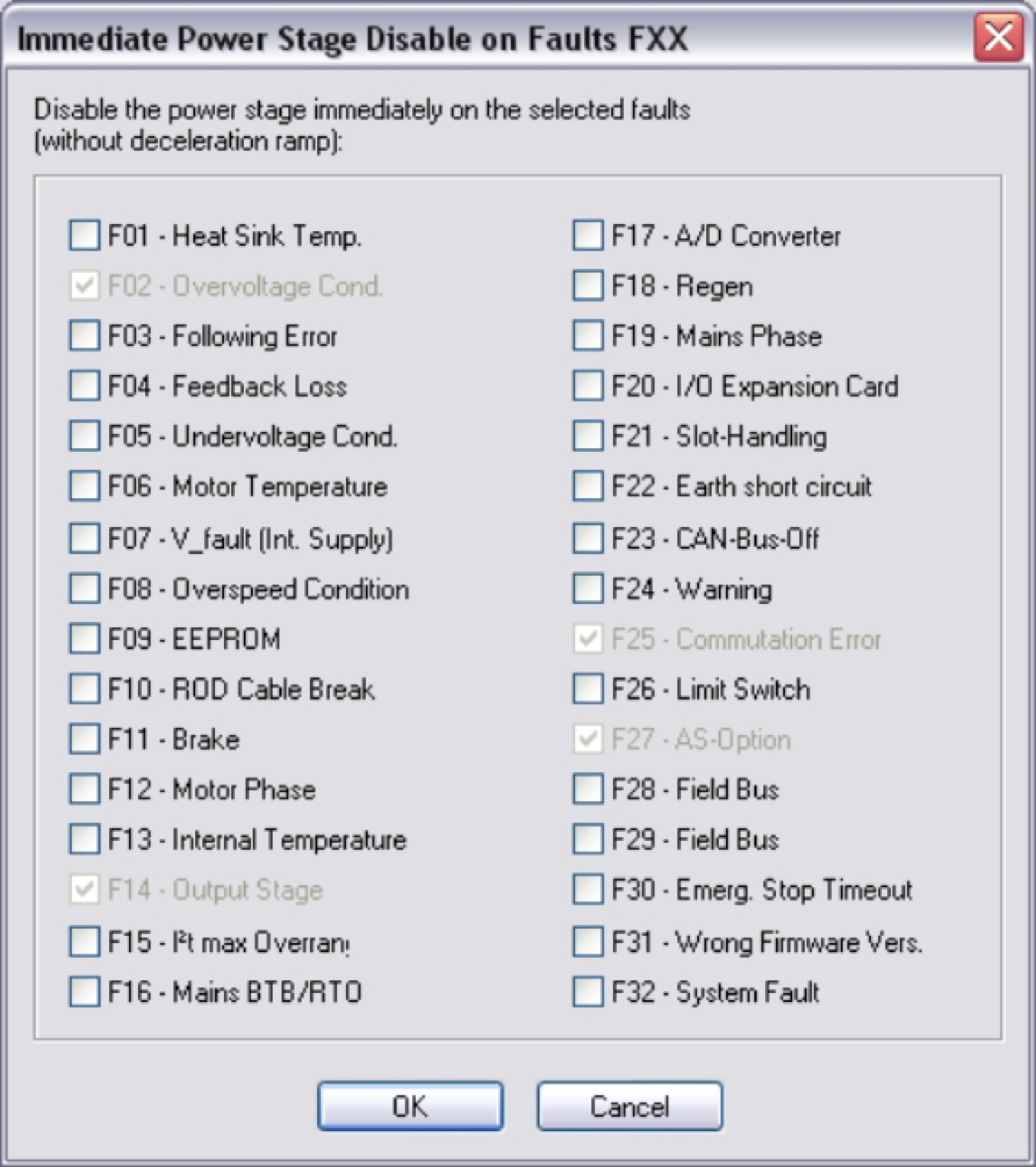

Click Button "Immediate Power Stage Disable on faults Fxx... " to define, which faults must immediately disable the power stage (bit variable ERRCNFG, see chapter Error messages).
|
