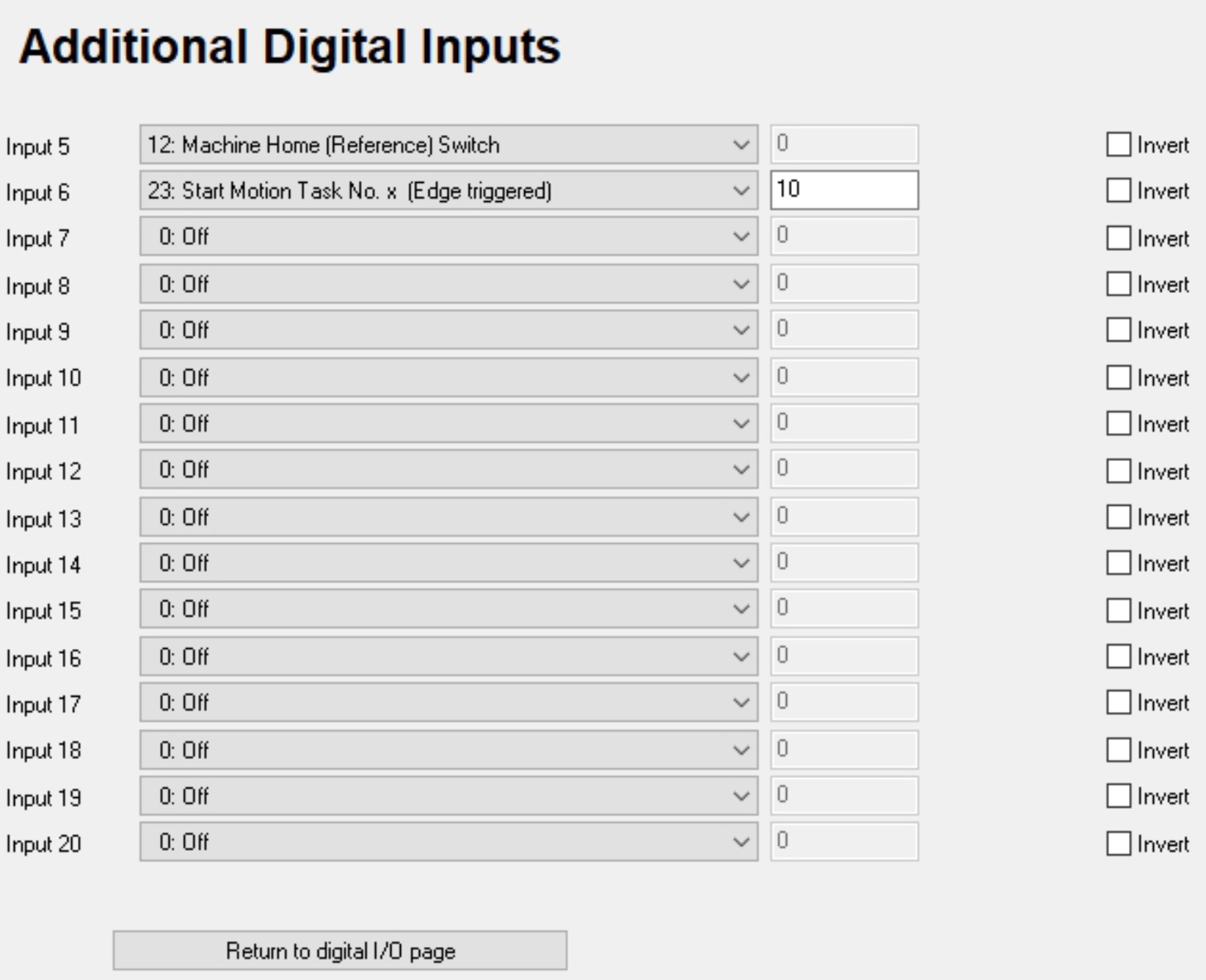

Additional Digital Inputs

Depending on the existing hardware configuration, these inputs are assigned to the I/O Expansion Card or the virtual software inputs.

Assign predefined functions to the digital inputs.

Depending on the function, you can enter a value or you reach an advanced input window via the corresponding button.

Screen text	ASCII Parameter
Input	INxMODE assigns the function
Value	INxTRIG auxiliary variable, depends on the function.
Invert	DIRIN inverts the assigned function

Click on the “Return to digital I/O Page” button to return to the I/O page.
