Additional Digital Outputs

Depending on the existing hardware configuration, these outputs are assigned to the I/O Expansion Card or the virtual software outputs .

Assign predefined functions to the digital outputs.

Depending on the function, you can enter a value or you reach an advanced input window via the corresponding button.

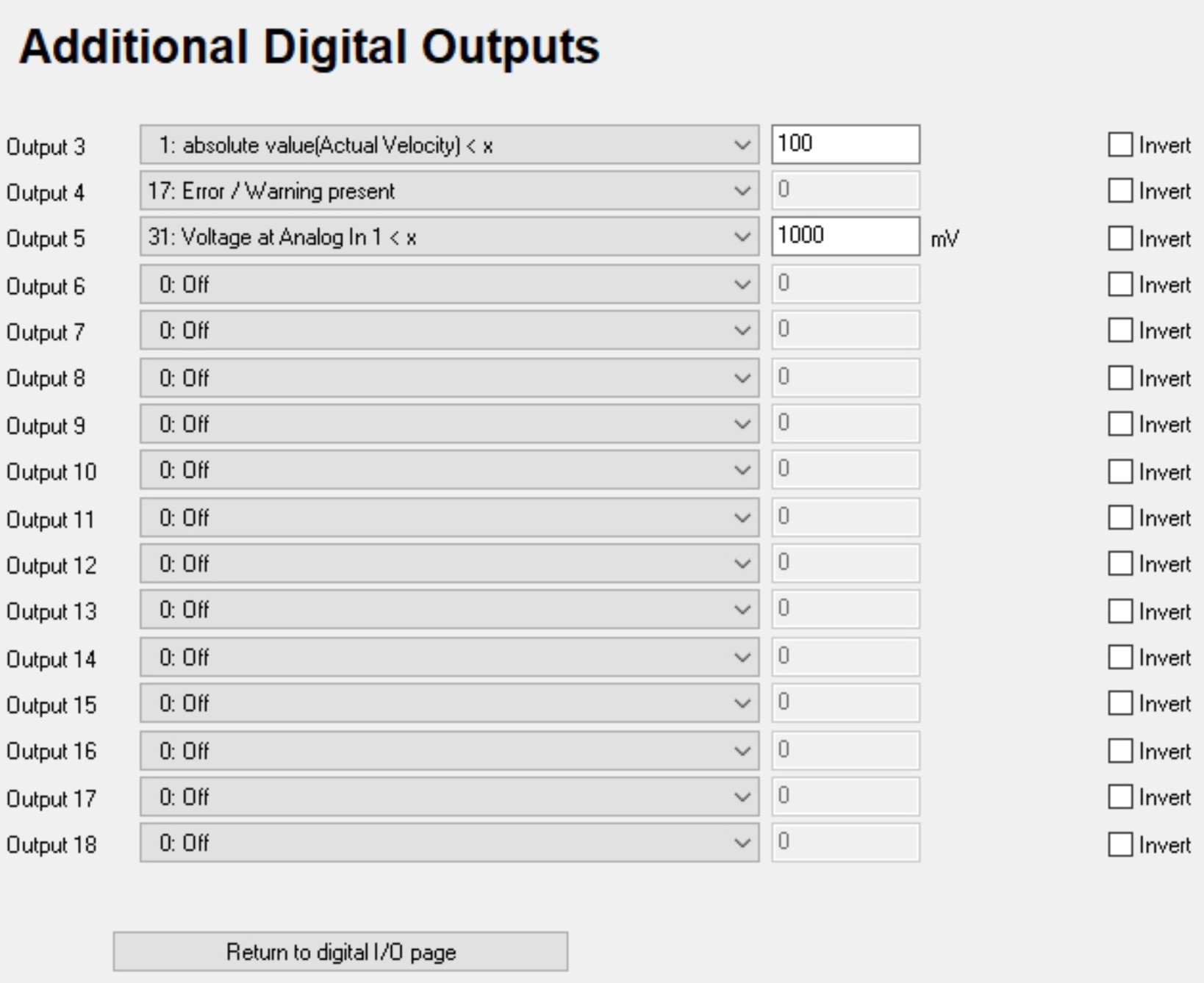

Screen text	ASCII Parameter
Output	OxMODE assigns the function
Value	OxTRIG auxiliary variable, depends on the function.
Invert	DIROUT inverts the polarity of the output

Click on the “Return to digital I/O Page” button to return to the I/O page.
