Encoder Emulation

With S700 this function is available only if the expansion card "PosI/O" or "PosI/O-Monitor" is installed.

Incremental Encoder (ROD, A QUAD B)

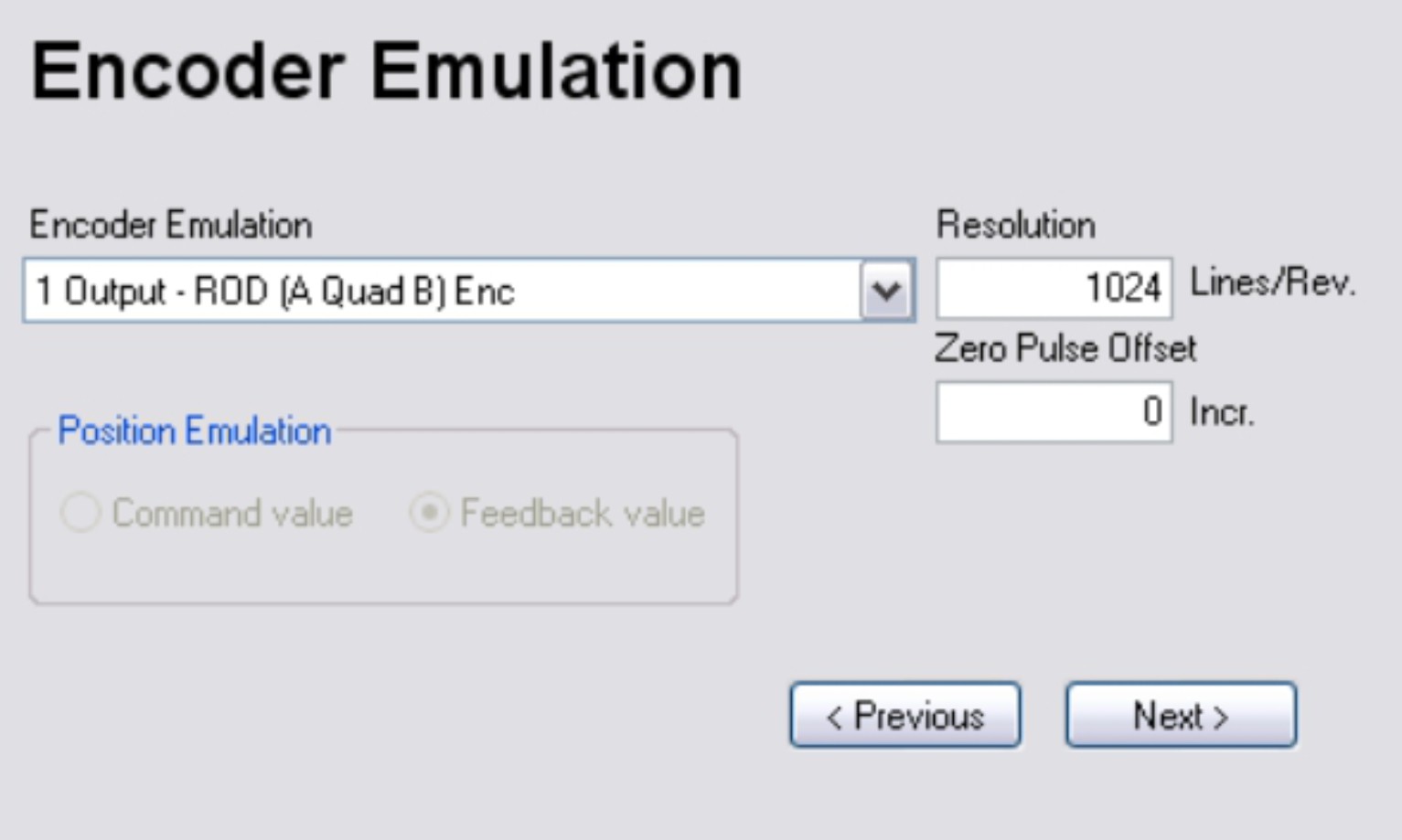

Select the encoder emulation (position output, A quad B in the sample).

Screen text	ASCII Parameter
Encoder Emulation	ENCMODE
Resolution	ENCOUT
Zero Pulse Offset	ENCZERO

Absolute Position Encoder (SSI)

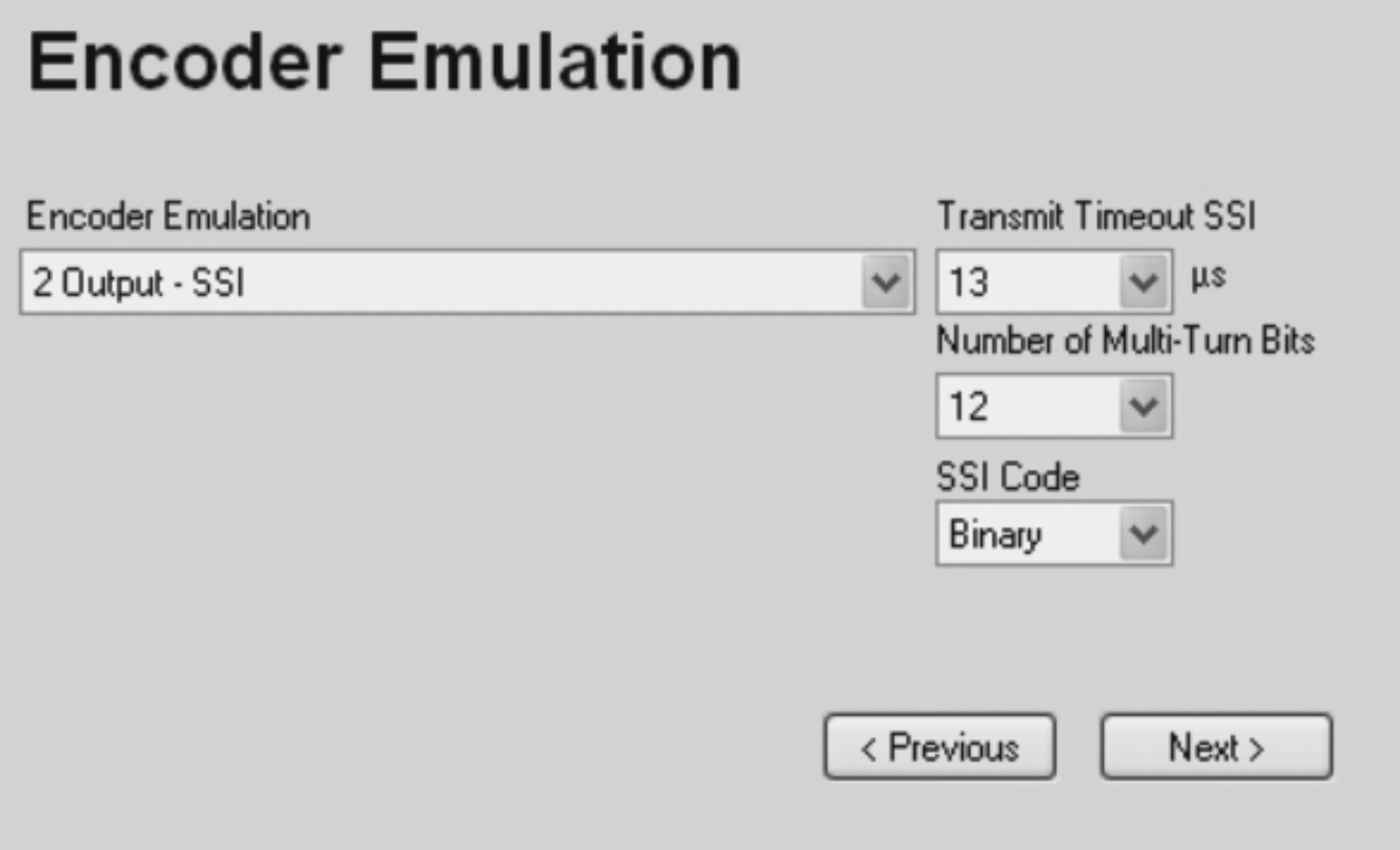

Select the encoder emulation (position output, SSI in the sample).

Screen text	ASCII Parameter
Encoder Emulation	ENCMODE
Transmit Timeout SSI	SSITOUT
No. of Bits (Multi / Single Turn)	SSIREVOL
SSI Code	SSIGRAY
