Wake and Shake - Expert

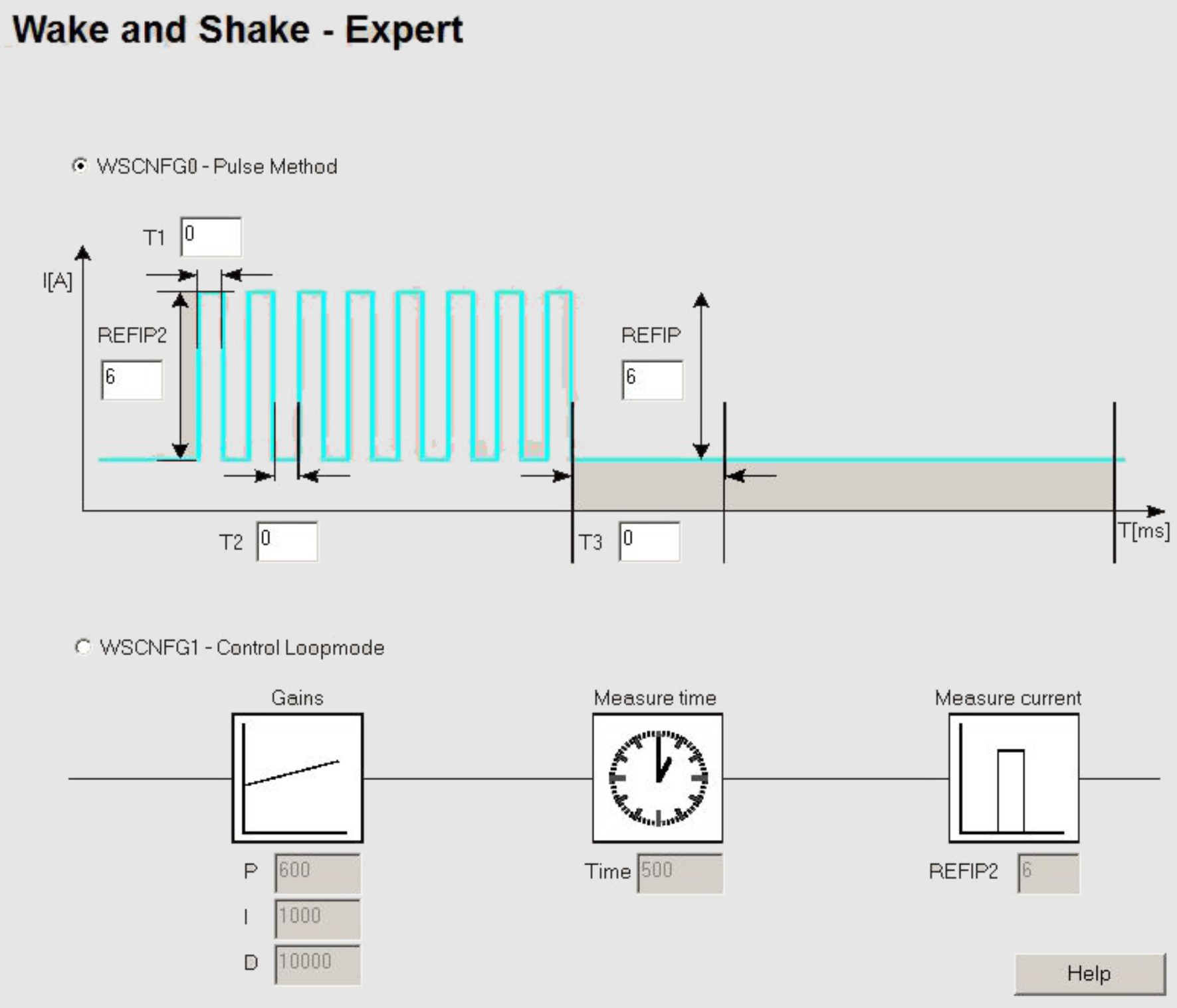

Wake and Shake is used for feedback systems without commutation signals, such as a Hall sensor or a SinCos encoder. Experts can make settings for the Wake and Shake procedure on this screen.

Motor overspeed!

Settings with significant errors may lead to motor overspeed. Risk of injury. The parameters should only be changed after consulting a service technician.

Screen text	ASCII Parameter
WSCNFG0 - Pulse Method
T1	WSTIME, unction execution time
REFIP2	REFIP2, peak current for commutation location
REFIP	REFIP, peak current
T2	WSTIME2, pause time between the current vectors
T3	WSTIME3, time interval between coarse and fine tuning
WSCNFG1 - Control Loop Method
P	MPKP, P component of the position controller
I	MPKI, I component of the position controller
D	MPKD, D component of the position controller
Time	MPTIME, alignment time for commutation location
REFIP2	REFIP2, peak current for commutation location
Help	Opens the KDN page Wake and Shake.

Click on the “Help” button to open the KDN page Wake and Shake , which contains detailed information. Click on the “Return to Feedback Page” button to return to the feedback page.e.
