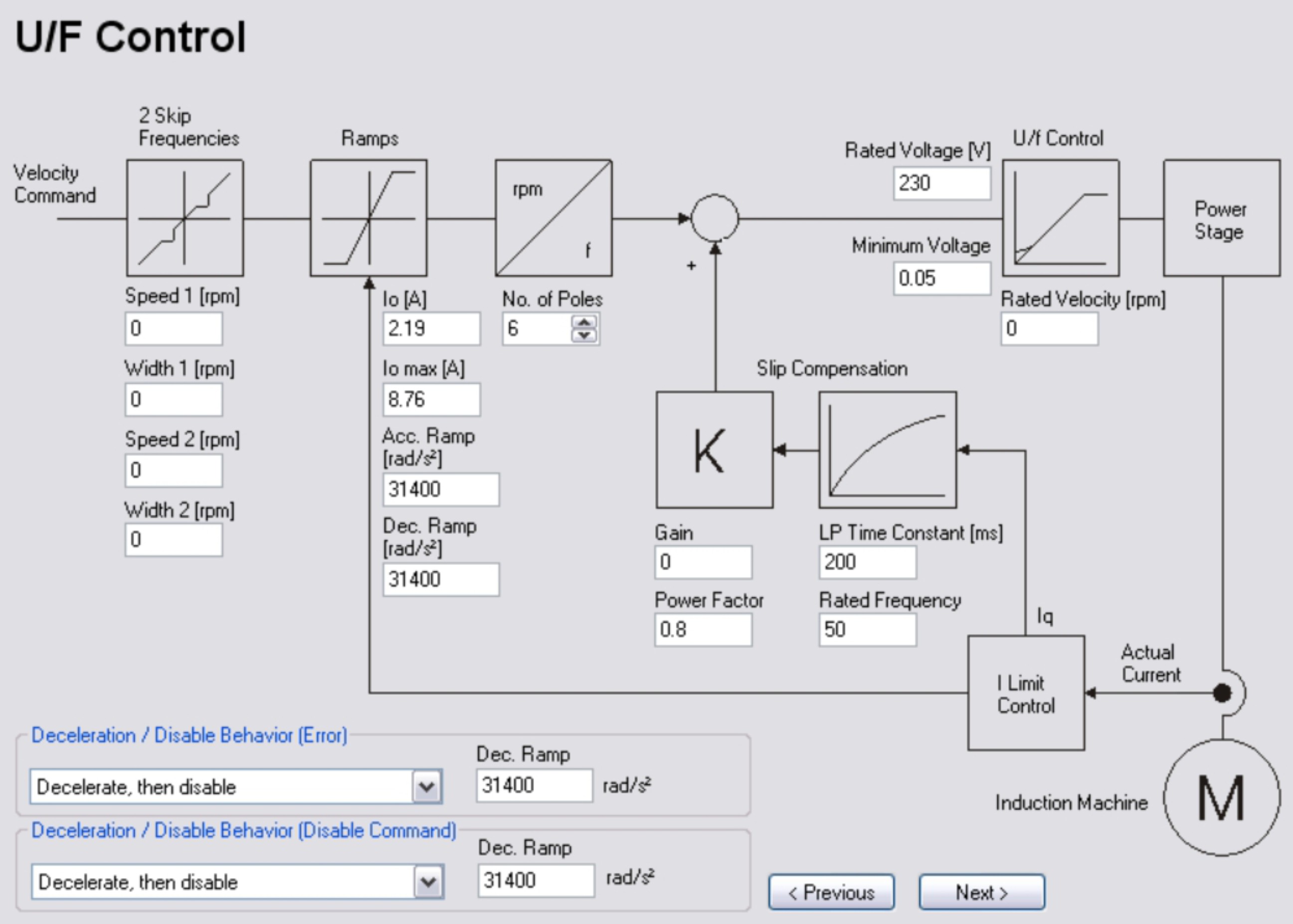

This screen page only appears if the setup wizard "Asynchronous Motor (U/f Control)" is selected. All required parameters for the operation of an induction machine (asynchronous motor) can be set here.
|
Screen text |
ASCII Parameter |
|---|---|
|
Speed 1 |
|
|
Width 1 |
|
|
Speed 2 |
|
|
Width 2 |
|
|
Io |
|
|
Iomax |
|
|
Acc. Ramp |
|
|
Dec. Ramp |
|
|
No. of Poles |
|
|
Rated Voltage |
|
|
Minimum Voltage |
|
|
Rated Velocity |
|
|
Gain |
|
|
Power Factor |
|
|
LP Time Constant |
|
|
Rated Frequency |
|
|
Deceleration/Disable Behavior (Error) |
|
|
Dec.Ramp (Error) |
|
|
Deceleration/Disable Behavior (Disable Command) |
|
|
Dec.Ramp (Disable) |
Hints for sensorless operation of asynchronous motors: see application note Asynchronous machine - U/f Control.
|
